Pattern-Welded Seax

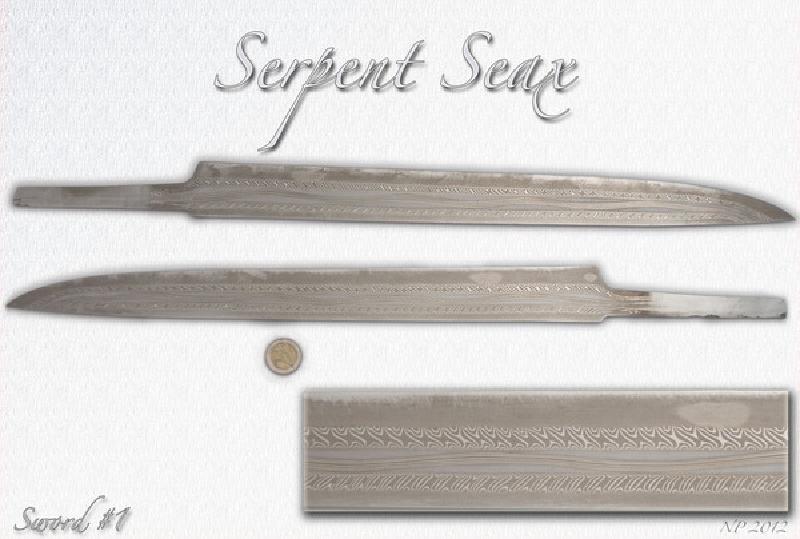

In my quest to forge another double-edged viking-age sword, I have been experimenting with a serpent pattern. As part of my experimentation, I forged the the seax shown in the picture. It’s over all length is 21.5 in, with a 16.5 in long blade and 5in long handle. It’s a 7 bar construction. The cutting edge and back are W1. The two twisted bars are 11-layers of 15n20 and 1095. The serpent itself is an 11-layer straight laminate of 15n20 and 1095 backed by two bars of mild steel. As the picture shows the pattern came out quite nicely and the overall shape of the blade is quite pleasing. The next project is going to take the serpent pattern to a double-edged sword. We will see how that goes.
